Product introduction:

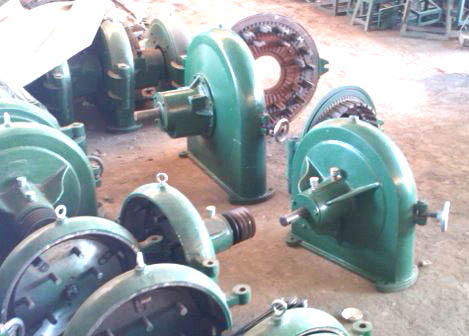

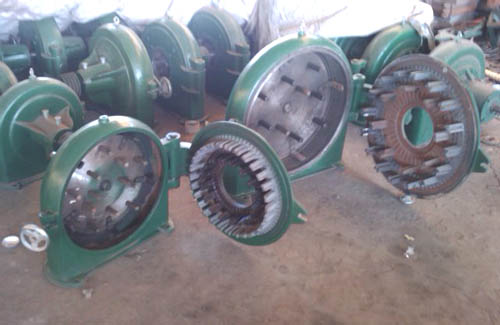

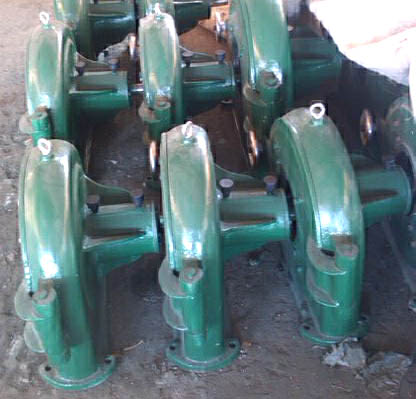

The FFC disk mill produced by our company is a kind of universal mill. It includes FFC-800, FFC-600, FFC-550, FFC-500, FFC-45A, FFC-37, FFC-23, FFC-216, FFC-20, FFC-19, FFC-18, FFC-18B, FFC-16, FFC-15B, FFC-15, etc. . It is designed compactly with a wonderful appearance: small in size and light in weight, reliable in operation and easy in maintenance. It has a large range of service and proves to be of high quality in crushing.
With this machine, it is most desirable to crush various coarse grains and fodder, such as corn, soybean, sorghum, dried sweet potato slices and soybean cake. All of these can be crushed into powder by one stroke without any residue.
This machine is also popular in chemical industry, paper-making and medical industry can be used to crush various kinds of chemical raw materials, exercise beating in paper making and process Chinese herbal medicine. And can also be used to crush fresh fruit, fresh sweet potato and soaked soybeans, which contain a great deal of moisture content.

Instructions for use:

The machine should be checked before using the mechanical transmission part is loose and other abnormal phenomenon, the machine running direction should be consistent with the direction of the arrow.

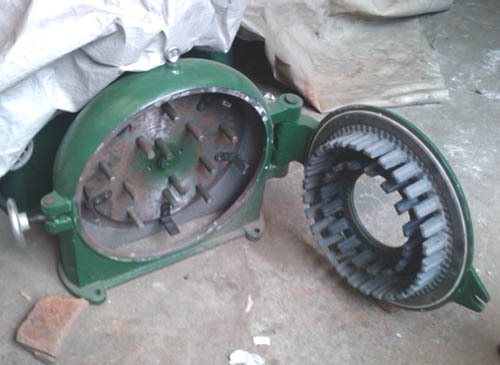

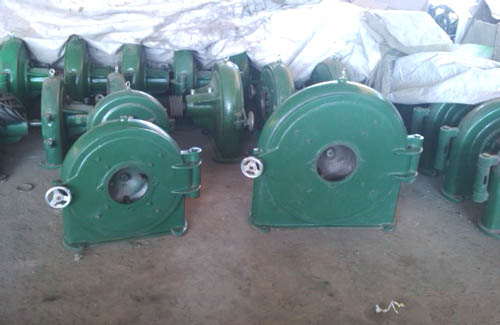

When in use, no-load test for 1-2 minutes, to be observed no abnormal phenomenon can feed, feed should flow increases gradually, and observe the motor power supply and operation conditions, the feeding and power balance in normal operation, fixed die cutting plate, work. - such as the material is too wet, sticky knot too big, effect of powder, should be the material drying or replace the sieve plate thick. Change the screen plate only the front cover can be opened, the installation should pay attention to both sides of the front cover handwheel consistent tightness, the front cover and the casing seal.
Before the machine is shut down, you should stop feeding and make the machine running 2-3 minutes and then stop, in order to reduce the residual material.

Maintenance and repair:

Regularly check the bearing, replace the high-speed butter, in order to ensure the normal operation of the machine.
Should always check the wearing parts, such as serious abrasion phenomenon to be timely replacement.
Use of the machine, such as the spindle speed is slowing, the motor must be down-regulation, which will enable the machine to achieve the specified speed
strictly prohibited-the metal material flows inside the machine, such as iron nail, iron block.
After the end of the work, must to clean the residual material parts of machine. Stops for a long time to clean the machine, with a tarpaulin cover.

model

unit

FFC-800

FFC-600

FFC-550

FFC-500

FFC-45A

FFC-37

FFC-23

FFC-26

FFC-19B

FFC-19

FFC-15B

FFC-15

Speed of the machine

r/min

2200

2200

3000

3000

3000

3600

5800

6000

7600

7600

9000

9000

Outer diameter of the rotator

mm

600

600

450

450

450

370

230

216

180

180

150

150

Number of oblate gears

set

20

12

12

10

5

4

4

4

4

4

4

3

Number of knuckle gears

set

12

18

14

17

12

8

8

6

6

4

4

3

tooth ring of

the gear wheel

circles

2

2

2

2

2

2

2

2

2

1

1

1

Sieve size

mm

0.2, 0.4, 0.6, 0.8, 1.2, 1.5, 1.8, 2.0, 2.5, 3.0, 3.6, 4.0, 5.0, 6.0, 8.0, 12, 16, 20, 30, 36, 60, 100, 150

Motor Power

kw

37-45

22-30

18.5-22

15-18.5

11

7.5

3

3

2.2

1.5

1.5

1.1

Motor speed

r/min

1450

1450

1450

1450

1450

1450

2840

2840

2840

2840

2840

2840

Dimension

mm

220×105

×210

215×95

×210

195×100

×190

190×90

×190

180×80

×190

105×68

×132

80×50

×105

79×56

×102

74×56

×86

71×45

×81

55×42

×65

53×31 ×61

Package size

(without motor)

kg

550

415

385

240

205

158

58

57

45

37

23

18
