Mill cake-2

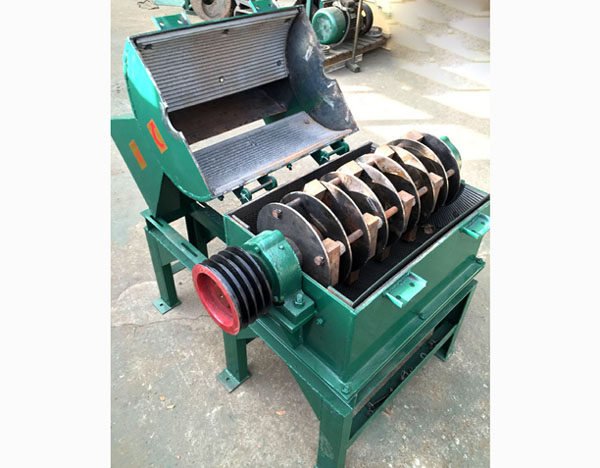

The powerful crusher is suitable for crushing hard materials or large cake materials.

working principle

The powerful crusher is mainly used to crush materials by impact energy. When the powerful crusher is working, the motor drives the rotor to rotate at a high speed, and the materials enter the crusher chamber evenly. The high-speed rotating hammer impacts and shears the materials, causing the materials to be broken. At the same time, the gravity of the materials themselves makes the materials rush from the high-speed rotating hammer to the baffle and screen bar in the frame, and the materials larger than the size of the screen hole are kept on the screen plate and continue to be hit and ground by the hammer, Until it is crushed to the required discharge particle size and finally discharged out of the machine through the sieve plate.

characteristic



1. It is suitable for crushing large hard objects such as minerals, light bricks and coal blocks. The whole bean cake, peanut cake and other oil residue cakes can also be processed and crushed at one time.

2. The processing technology is mature. The box, hammer and other important parts are processed as a whole to ensure the matching accuracy.

3. Reasonable structure, convenient operation, power saving and durable, practical and economical.

4. Ultra thick hammers are used, and thickened lining plates are installed inside the machine body to improve the service life.

4. The spindle is calibrated by dynamic balance to ensure smooth and accurate operation.

5. The precision welded steel structure can meet strict requirements.

6. The spindle is thick, with high precision and stable operation.

7. The super large inertia wheel increases the torque and productivity, and it is not easy to get bored.
